DIN 928 Square Weld Nut
DIN 928 Square Weld Nut, Type A / Type B, made of carbon steel, class 5/ class 8, size M4-M16 from China Weld Nuts Manufacturer.
DIN 928 Square Weld Nut Type A / Type B, Steel type
Standard: Class 5 / Class 8
Finish: Plain
Size: M4-M16
 |
 |

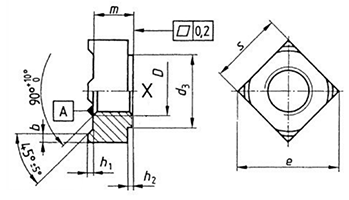

DIN 928 Square Weld Nut specification:
| Size [d1] |
Pitch [p] |
Height [m (h14J] |
Width [s (h14)] |
Hole [d2] |
Weight [kg/1000Pcs] |
| M4 | 0.7 | 35 | 7 | 6 | 0.81 |
| M5 | 0.8 | 42 | 9 | 7 | 1.70 |
| M6 | 1.0 | 5 | 10 | 8 | 2.40 |
| M8 | 1.25 | 65 | 14 | 105 | 6.50 |
| M10 | 1.5 | 8 | 17 | 125 | 11.30 |
| M12 | 1.75 | 95 | 19 | 148 | 16.60 |
| M14 | 2.0 | 11 | 22 | 168 | 26.70 |
| M16 | 2.0 | 13 | 24 | 188 | 35.80 |
