DIN 915 Hex Socket Set Screw With Dog Point
DIN 915 Hex Socket Set Screw With Dog Point, material by steel, grade 8.8 or 12.9, black oxide, size M3-M24 from China Set Screws Manufacturer.
Hex Socket Set Screw With Dog Point, DIN 915 / ISO 4028
Material: Carbon Steel , black oxide;
Grade: 8.8 / 12.9
Size: M3-M24
 |
 |

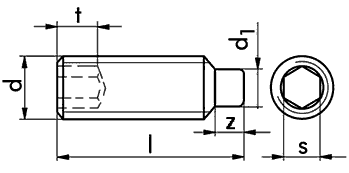

DIN 915 Hex Socket Set Screw With Dog Point specification:
| Size (d) |
Point Dia. (d1) |
Depth (t) |
Across Flat (s) |
| M 3 | 2.0 | 1.2 | 1.5 |
| M 4 | 2.5 | 1.5 | 2.0 |
| M 5 | 3.5 | 2.0 | 2.5 |
| M 6 | 4.0 | 2.0 | 3.0 |
| M 8 | 5.5 | 3.0 | 4.0 |
| M 10 | 7.0 | 4.0 | 5.0 |
| M 12 | 8.5 | 4.8 | 6.0 |
| M 16 | 12 | 6.4 | 8.0 |
| M 20 | 15 | 8.0 | 10 |
| M 24 | 18 | 10 | 12 |
