DIN 7991, Hex Socket Countersunk Head Screw
DIN 7991, Hex Socket Countersunk Head Screw, class 8.8, 10.9 and 12.9 Material by steel, black oxide, size M1.6-M16 from China machine screws Manufacturer.
DIN 7991, Hex Socket Countersunk Head Screw
Material: Steel, Zinc plated
Class: 10.9 or 12.9
Size: M1.6-M16
 |
 |

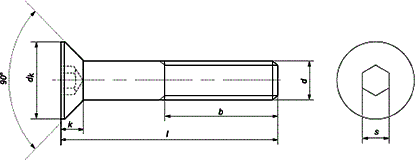

DIN 7991, Hex Socket Countersunk Head Screw specification:
| Standard | Finish | Size | Length (mm ) |
| DIN 7991 | Black oxide | M1.6 | 3mm -12mm |
| DIN 7991 | Black oxide | M2 | 5mm -15mm |
| DIN 7991 | Black oxide | M2.5 | 5mm -15mm |
| DIN 7991 | Black oxide | M3 | 6mm -25mm |
| DIN 7991 | Black oxide | M4 | 6mm -30mm |
| DIN 7991 | Black oxide | M5 | 10mm -50mm |
| DIN 7991 | Black oxide | M6 | 12mm -60mm |
| DIN 7991 | Black oxide | M8 | 12mm -70mm |
| DIN 7991 | Black oxide | M12 | 20mm -100mm |
| DIN 7991 | Black oxide | M16 | 30mm -150mm |
